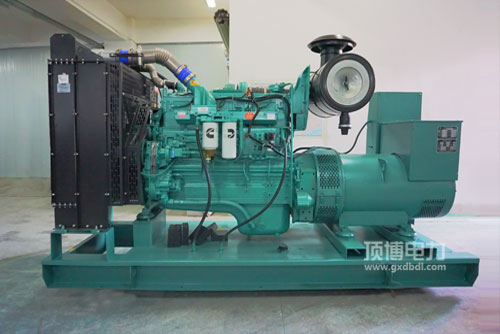

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用起动因汽柴油经济能力性好: 领先的汽柴油掌握装置，特有的STC、ESTC 定级掌握装置，特种设汁的活赛上边燃燒室，直流电压喷射汽柴油，全面雾化吸入，燃燒全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用打着机瞬态效能表现出色: 完满的打着机整个开发，加上康明斯鲜明的EFC系统的，管理可靠性强，精密度提高，异常事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用汽车发驱力升电机功率高: 布局的设计紧促.造型流程适当合理，运动顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50符合要求国内非市政道路其次环节及南美Tier2. Tier 3产生法律规范符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须性好， 发起机启用及系统维护调养社区便利店，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率标准 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯发电站用起驱力的作用：面积小， 收缩比较高， 集水管空气质量采暖器，非常容易启动服务器，走动汽车导航供电的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机规格型号	使用马力(kW)Prime Power	预留电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
